Home > Item Number: 3002SSIL

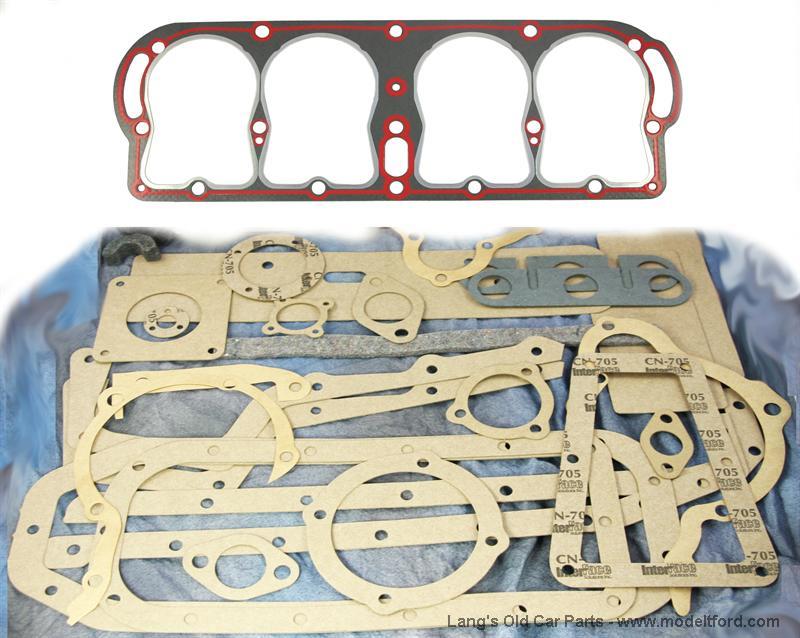

Engine Gasket set with New Silicone/Steel Head gasket.

Model T Engine Gasket set with New Silicone/Steel  Head gasket.  - 3002SSIL
Item Number:3002SSIL
Year:1909-1927
Condition:New
Price:$49.75 set




Additional Information

Engine Gasket set with New Silicone/Steel Head gasket. Includes all gaskets for motor, transmission, pan and manifold. Note: The manifold gasket is the 3 in 1 style (#3063-3)
This will not work with "Z" high compression heads part 3001H-14 or 3001HCH.

Questions and Answers
What order and torque do you tighten head bolts?


You tighten these head bolts starting from the center  bolt alternating sides until you reach the ends. The torque depends on what type of head you have.

  • Original Steel Head - 50-55 lbs.

  • Aluminum Reproduction Head 45 lbs.


Answered By: 23 SEL
148 out of 232 found this answer useful.

I Found this information or
after tightning head down and running engine, must a new head gasket be used if tore back down?
 You can get away with reusing the copper style gasket as long as it isnt damaged, The steel gaskets and the silicone gaskets are a one time use.
Answered By: 23 SEL
49 out of 87 found this answer useful.

I Found this information or
Will this work with high compression heads or pistons?
 No this will not work with the high compression heads, But will work with high compression pistons
Answered By: 6 JRL
4 out of 9 found this answer useful.

I Found this information or


To ask a question about this item please press and fill out the form.
