Home > Item Number: 3063MC

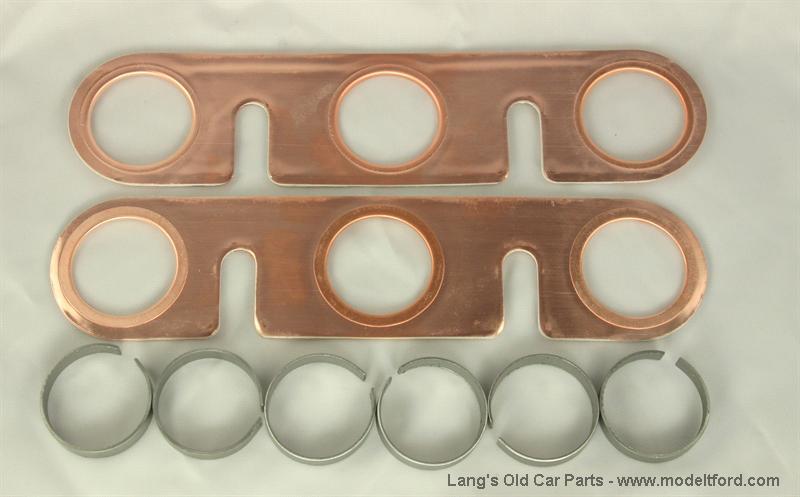

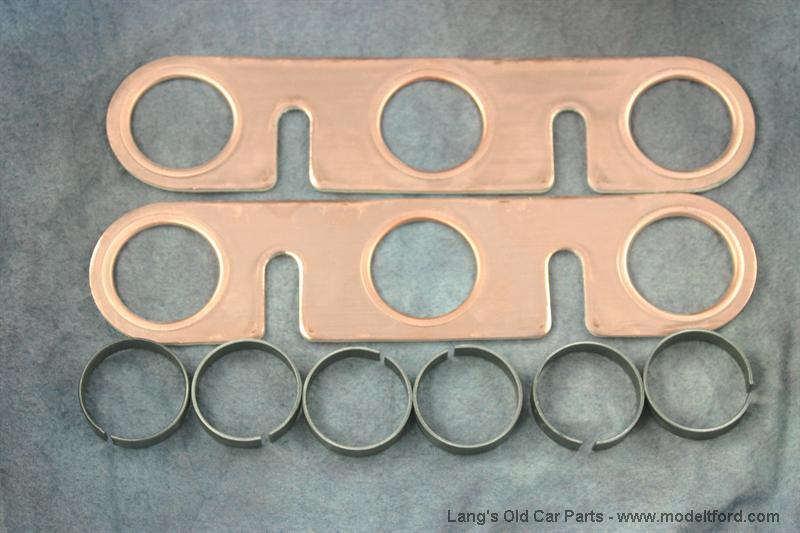

Manifold gasket set, 3 in 1 style, Copper clad with glands

Model T 3063MC - Manifold gasket set, 3 in 1 style, Copper clad with glands
Model T 3063MC - Manifold gasket set, 3 in 1 style, Copper clad with glands
Item Number:3063MC
Year:1909-1927
Condition:New
Price:$24.95 set




Additional Information

Manifold gasket set, 3 in 1 style 2 piece set. copper clad, with steel glands installed. This gasket sets into the exhaust and manifold ports, excellent quality and fit. This gasket set is recommended because it is easier to install than the original style part# 3063-64 which has 12 pieces to be held in place while mounting. The gland rings hold the manifold in place to help prevent the manifold from bending as it is constantly being heated and cooled. Helpful Hint: To check for a straight manifold, place a straight edge across the bottom edge of the 4 manifold holes. They should all be in alignment. If your manifold is warped (bent), the hole closest to the exhaust pack nut will be lower than the rest.

Questions and Answers
Will this manifold gasket set also work with a warped (bent) manifold?
 Yes this can help with a warped manifold. It is the same shape as the 3063-3 but it does have the bigger holes in it for the gland rings. the only spot that you might have a problem is that if the manifold is warped enough and hits that bigger hole for the ports it will not make a good seal. Thank You Steve
Answered By: 23 SEL
76 out of 111 found this answer useful.

I Found this information or


To ask a question about this item please press and fill out the form.
