Home > Item Number: 3063-64


Manifold gasket set, original type with glands. 12 piece set

Model T 3063-64 - Manifold gasket set, original type with glands
Model T 3063-64 - Manifold gasket set, original type with glandsModel T 3063-64 - Manifold gasket set, original type with glands
Item Number:3063-64
Year:1909-1927
Condition:New
Price:$8.50 set




Additional Information

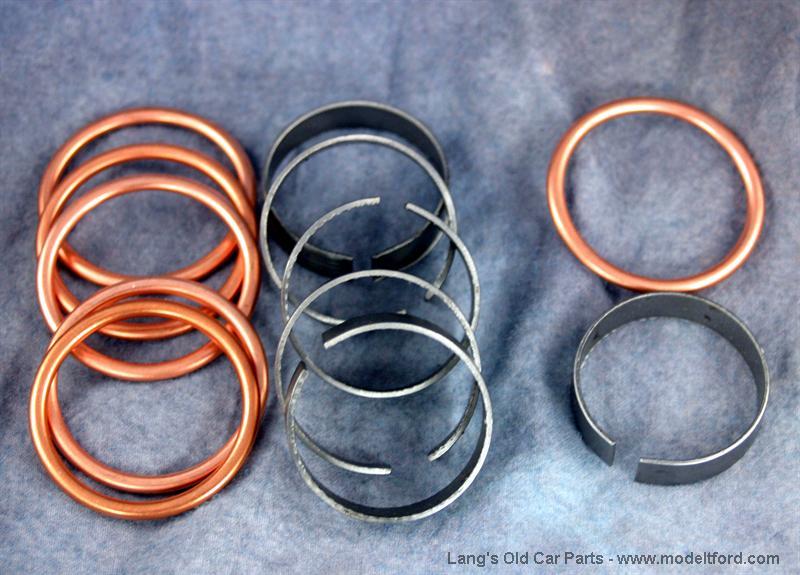

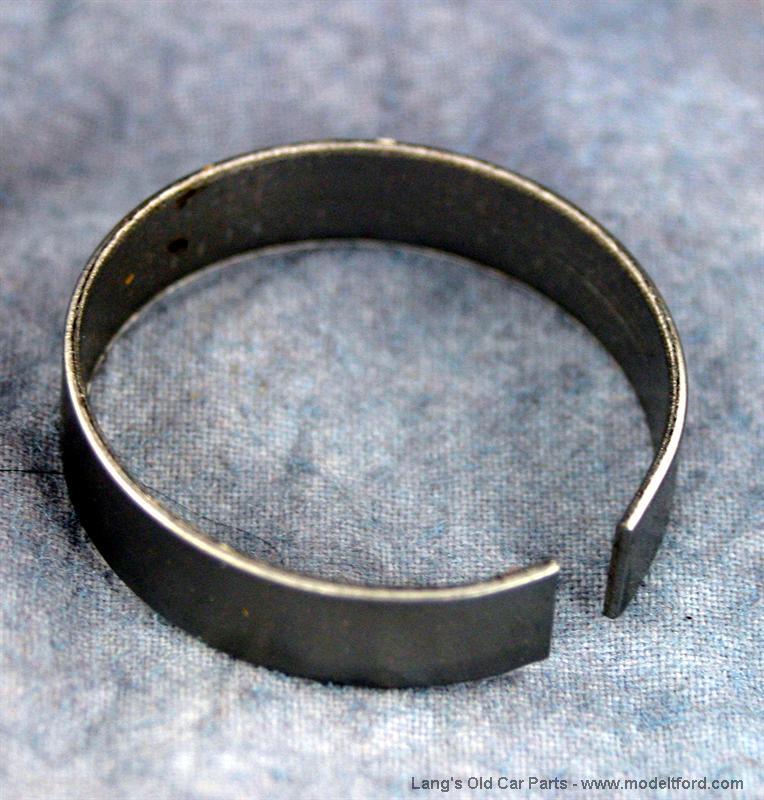

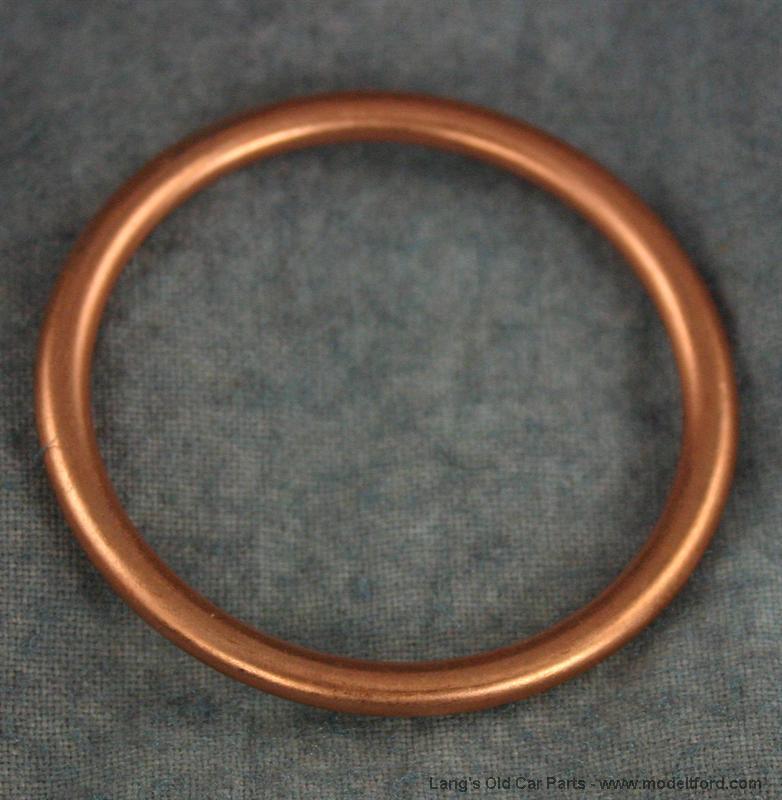

12 piece set with 6 copper rings and 6 steel glands. These pieces keep the manifold and head aligned while providing a good seal. Recommend for straight manifolds. The glands go into both the exhaust ports and the manifold ports holding them in place to help prevent the manifold from going out of alignment as it is constantly being heated and cooled.

Helpful Hint: To check for a straight manifold, place a straight edge across the bottom edge of the 4 manifold holes. They should all be in alignment. If your manifold is warped (bent), the hole closest to the exhaust pack nut will be lower than the rest. If your manifold is bent toy have two options

  1. Purchase a new exhaust manifold.
  2. Use the 3 in 1 manifold gasket which will allow you to skip a glad ring.
Questions and Answers
There are currently no questions for this item.

To ask a question about this item please press and fill out the form.
