Home > Item Number: 3177OS

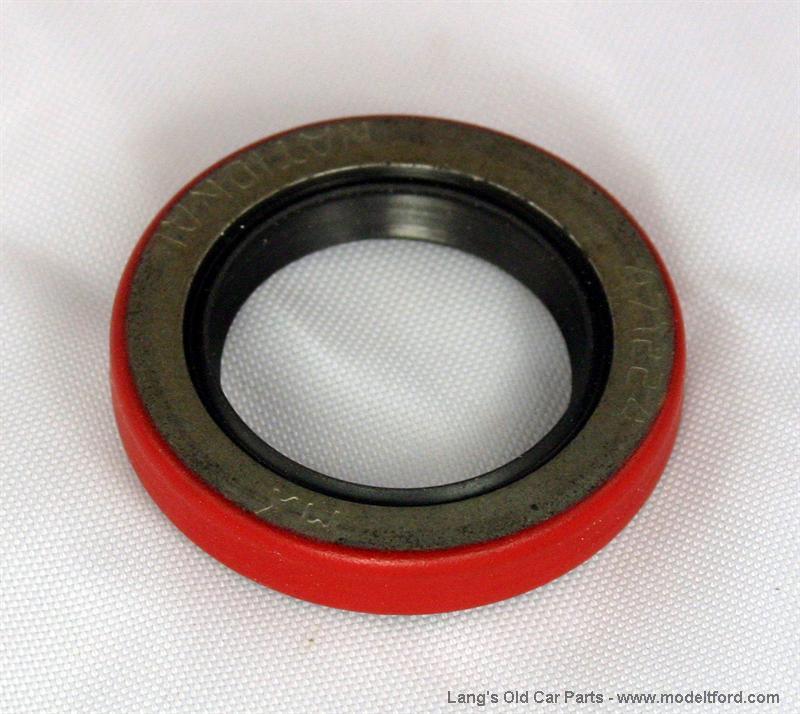

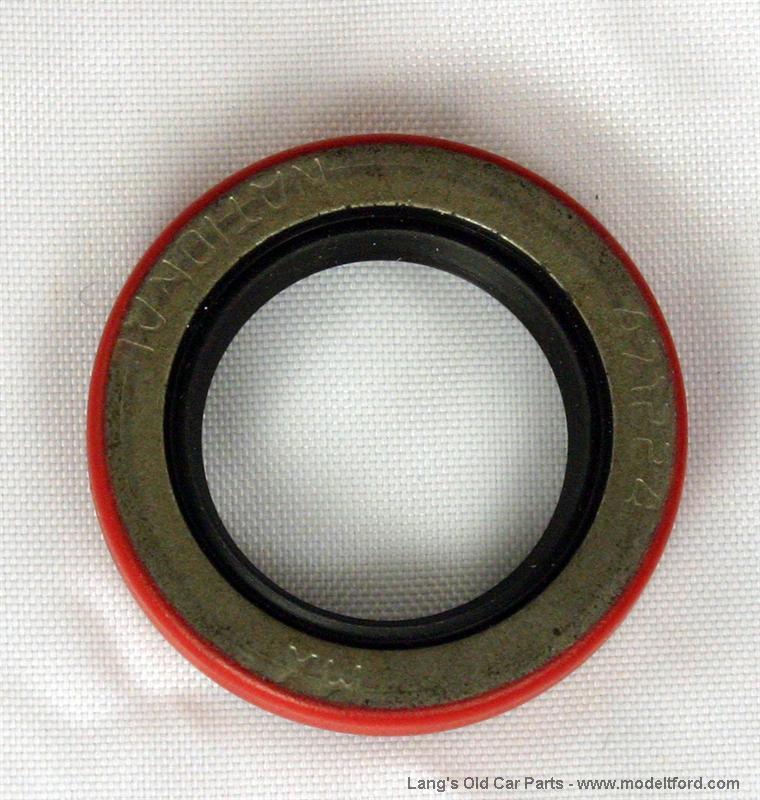

Timer (Camshaft) oil seal, modern neoprene seal

Model T 3177OS - Timer (Camshaft) oil seal, modern neoprene seal
Model T 3177OS - Timer (Camshaft) oil seal, modern neoprene seal
Item Number:3177OS
Per Car:1
Year:1914-1927
Condition:New
Price:$4.95 each




Additional Information

Timer oil seal, modern neoprene seal, use to replace timer felt and brass shield by pressing into front timing cover. (Highly recommend - Using the original felt and brass shield can be a source of trouble when they become worn or damaged.)

LANGS TECH TIP! the area in the timing cover where the seal mounts varies in diameter and occasional this seal fits loosely in the timing cover. To fix this situation place the seal in a vise between two pieces of wood and squeeze front and back sides together which will increase the outer diameter and improve the fit.

Questions and Answers
There are currently no questions for this item.

To ask a question about this item please press and fill out the form.
