Home > Item Number: 3250D

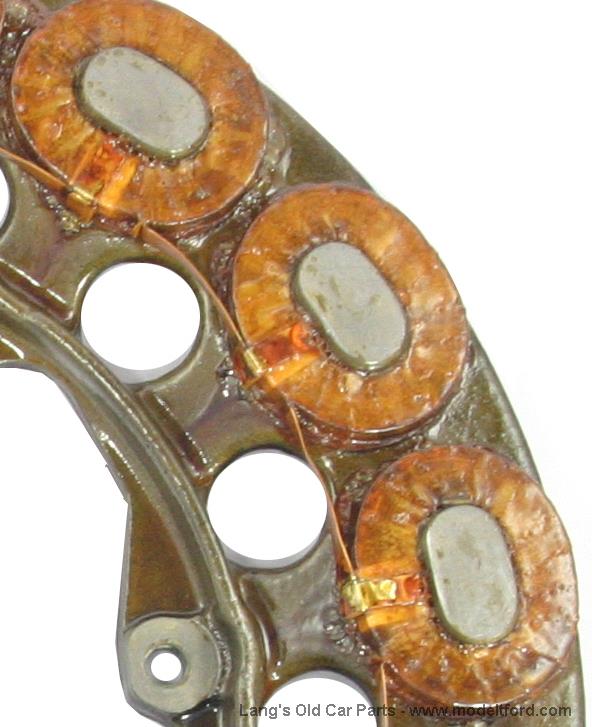

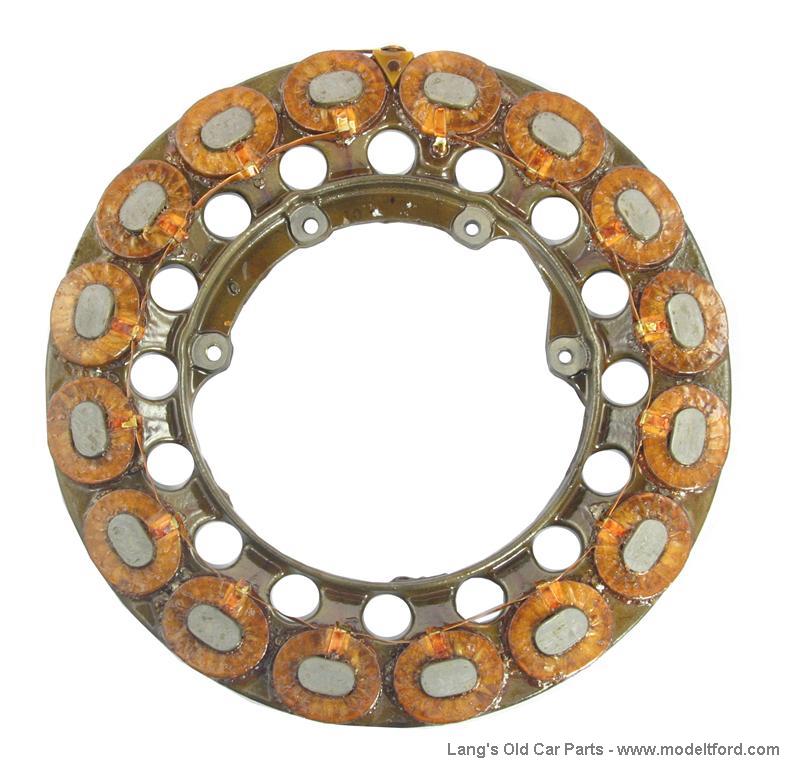

Magneto coil assembly, Rebuilt, single stack for cars with no starter.

Model T Magneto coil assembly, Rebuilt, single stack for cars with no starter. - 3250D
Model T 3250F - Magneto coil assembly, Rebuilt, single stackModel T Magneto coil assembly, Rebuilt, single stack for cars with no starter. - 3250D
Item Number:3250D
Per Car:1
Year:1917-1918
Condition:Refurbished
Price:$219.95 each
Core Charge:$50.00
For more information about core charges click here




Additional Information

Magneto coil assembly, Rebuilt, single stack for cars with no starter. These are the best coils available! They have all new copper (not just rewound). The copper is insulated with "short proof" polyester film tape which is good to 600 degrees and oil proof. Windings are then wrapped with silk tape. Finally the entire magneto coil is dipped in insulating solution and baked to cure the surface, this prevents additives in oil from damaging the coil. New very hard, heat proof fiber plaster contact block installed. NOTE: Oval single stack spools, non-removable post, cast iron ring, 1/4” stack, 3/4” thick magnets. This coil has NO notch on the outside diameter for the starter.

REFUNDABLE CORE CHARGE: A rebuildable single stack magneto coil ring for an EXCHANGE CORE REQUIRED or this REFUNDABLE CORE CHARGE WILL BE ADDED TO THE COST OF THIS PART. Cores must have all windings intact. Coils with notch for starter or without notch will be accepted. We will pay $10.00 for extra additional rebuildable cores.

Core Charge: $50.00 each
