Riveting tool for brake linings with bench mount anvil

Model T Riveting tool for brake linings with bench mount anvil - 2566RVTL
Model T Riveting tool for brake linings with bench mount anvil - 2566RVTL
Item Number:2566RVTL
Year - Cars:1926-1927
Year - Ton trucks:1918-1927
Price:$23.95 each

Additional Information

Riveting tool for brake linings, removes old rivets, drills and countersinks lining and swedges new rivets. This tool is for the tubular style rivets that were used in 1926-27 and on TT trucks and will not work with the earlier split rivets.

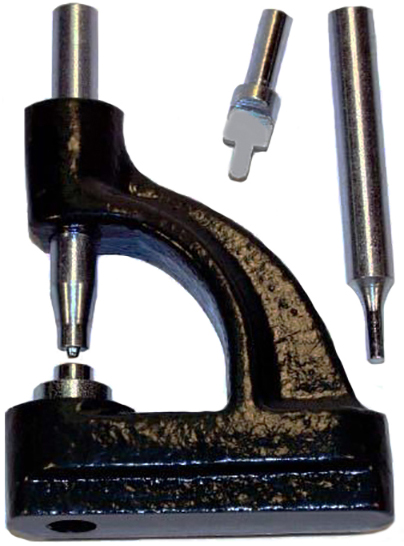

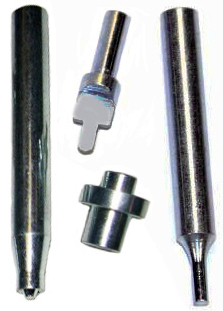

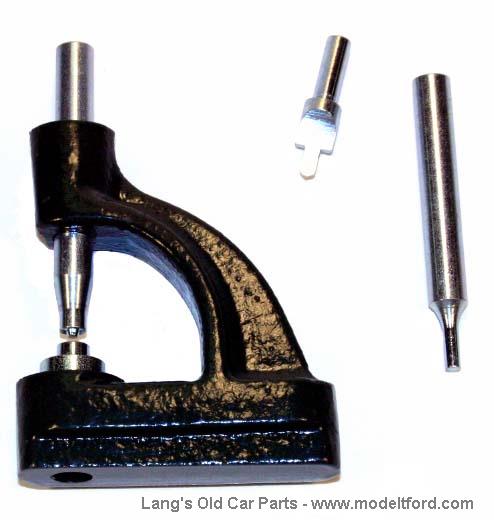

Includes a small (3-1/2" tall) anvil to hold the tools, rivets and brake shoe in place, a punch to remove old rivets, a tool to drill and countersink linings, a tool that holds the head of the rivet in the shoe and a tool to swedge the new rivets in place, .

Tech Tip: When installing brake linings begin riveting with the two center holes and work toward the outer ends. The lining should be clamped tight to the shoe. After the lining is installed on the shoe, the ends of each lining material should be ground at an angle to the two end rivets.

Questions and Answers
What size rivets does this tool utilizes?
 The rivets are a 1/8" diameter.
Answered By: 23 SEL
33 out of 62 found this answer useful.
