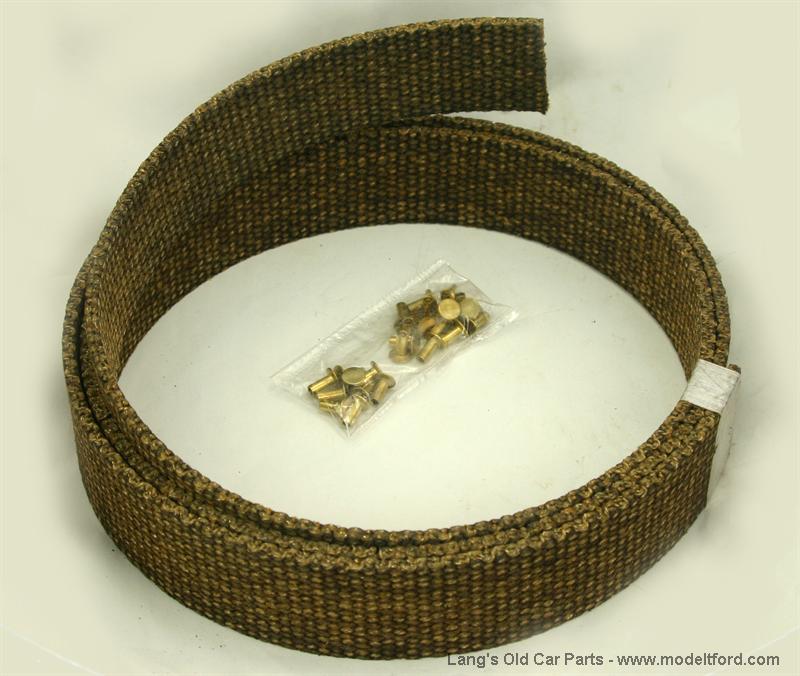

Emergency brake lining set

Model T Emergency brake lining set - 2566D
Item Number:2566D
Per Car:1
Price:$52.50 set

Additional Information

Emergency brake lining set, 2 bands with rivets. 1 set lines both brakes. NOTE: will not work on 1 Ton Truck brakes.
Tech Tip: When installing brake linings begin riveting with the two center holes and work toward the outer ends. The lining should be clamped tight to the shoe. After the lining is installed on the shoe, the ends of each lining material should be ground at an angle to the two end rivets.

Questions and Answers
I just recieved my lining kit. How do I properly make the holes? Do they need to have a recess for the rivit heads?

You will need to recess the rivet into the lining and to do this you will need to drill the lining. They have special stepped drill bits to make it easyer to do this and we sell a kit that has it in it with a tool to press the rivets in with. It is part #2566RVTL.

Answered By: 23 SEL
31 out of 56 found this answer useful.

I Found this information or
what are the deminsions?
 The linings are 32" long by 1.5" wide and there are two peices.
Answered By: 23 SEL
0 out of 0 found this answer useful.

I Found this information or
Will these linings work with the brake equalizer kit?
 These linings will work with any 26-27 model t passanger car brake shoes. They will not work on the earlier year shoes or the TT trucks.
Answered By: 23 SEL
0 out of 0 found this answer useful.

I Found this information or

To ask a question about this item please press and fill out the form.
