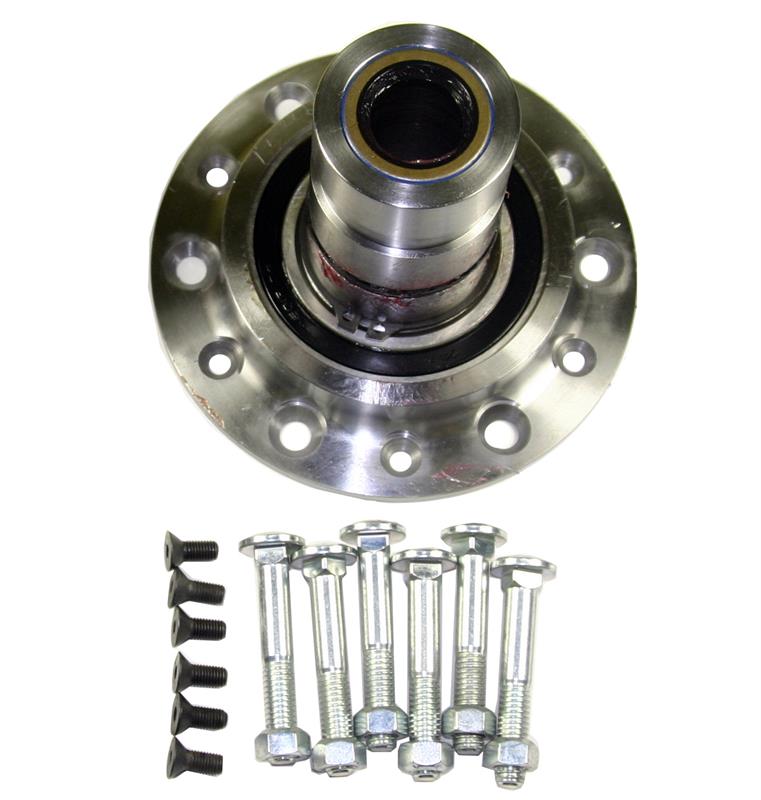

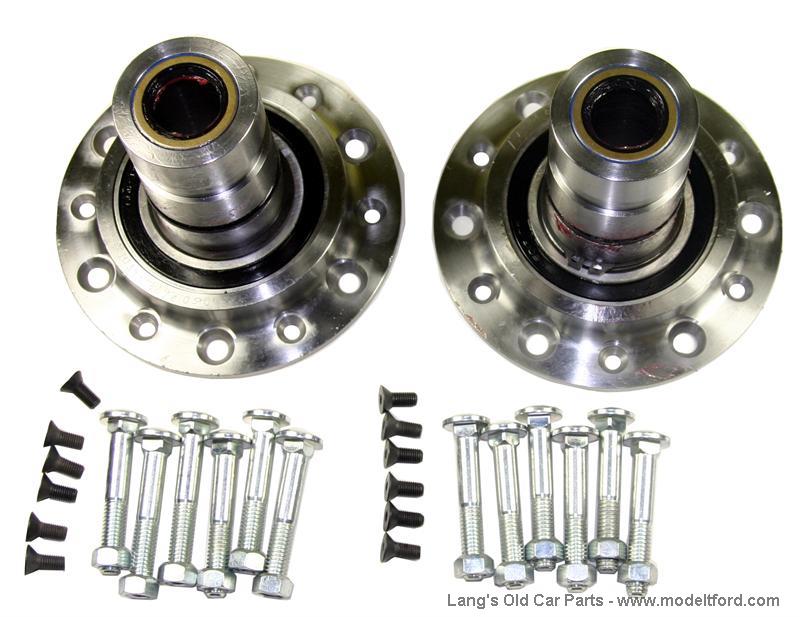

Safety Floating Rear Hub, for wood T wheels

Model T Safety Floating Rear Hub, for wood T wheels - 2508SF
Item Number:2508SF
Per Car:2
Price:$299.95 each

Additional Information

Safety Full Floating Rear Hub, for wood model T wheels. In the regular Ford rear axle, the load is transmitted from the housings, through the axle shaft and onto the wheel hub. This causes severe strain on the axle shaft. These floating hubs transfer the weight from the axle housing directly to the wheel removing load strain on the shaft. The kit replaces the outer roller bearings and sleeves with reliable modern bearings. The axle housing must be modified by cutting 1" off the outer tubing. In the event of an axle breaking you won't lose your wheel with these hubs! (2 required per car.)

NOTE: See part number 2508SDR to upgrade to the a safety hub that includes new 10" o.d. Heavy Brake drums!

Questions and Answers
Which way does the nut go on the carriage bolts? Is the beveled side down or is the beveled side up. Does the beveled side go into the countersunk hole or does the side with the locking tab go down?
 The beveled side of the nut goes inside the coutersunk hole on the saftey hub.
Answered By: 23 SEL
3 out of 6 found this answer useful.
