Home > Item Number: T4DP-2

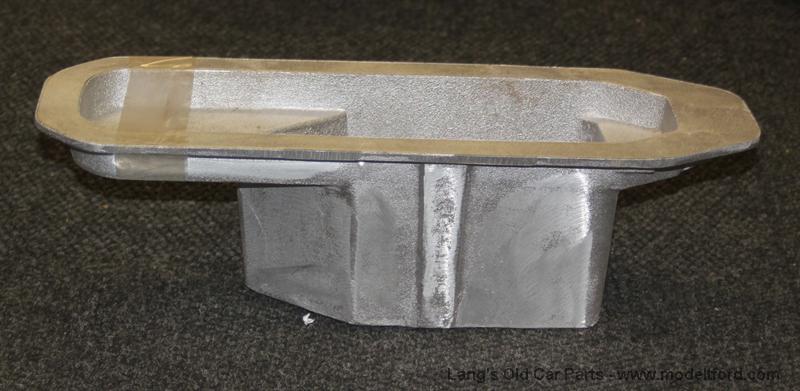

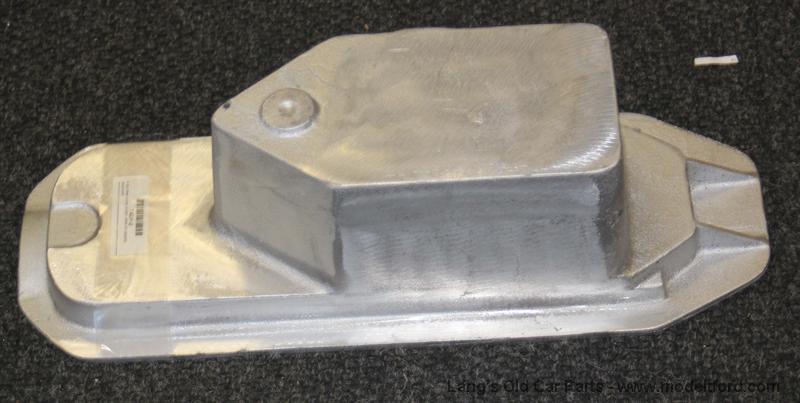

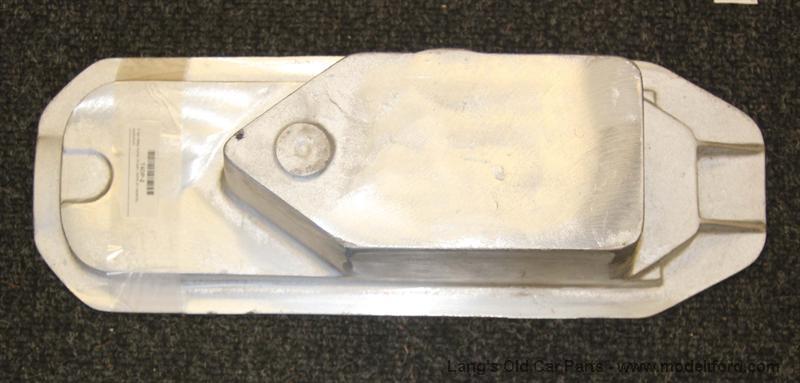

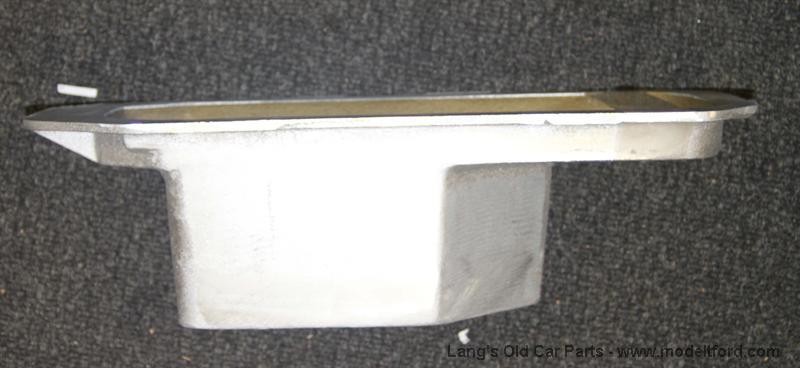

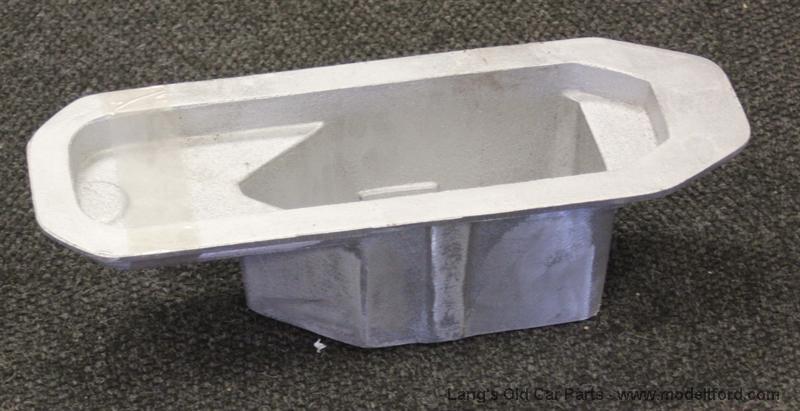

4 Dip, Deep Sump Oil Pan, Extra oil capacity, aluminum

Model T 4 dip deep sump oil pan, extra oil capacity, aluminum - T4DP-2
Model T 4 dip deep sump oil pan, extra oil capacity, aluminum - T4DP-2Model T 4 dip deep sump oil pan, extra oil capacity, aluminum - T4DP-2Model T 4 dip deep sump oil pan, extra oil capacity, aluminum - T4DP-2
Model T 4 dip deep sump oil pan, extra oil capacity, aluminum - T4DP-2
Item Number:T4DP-2
Per Car:1
Year:1924-1927
Condition:New
Price:This item is no longer available.
Additional Information

This pan replaces any 4 dip pan cover and is good for pressure lubes engines. It provides the needed extra oil capacity.
Dress up your speedster or other cars, Looks Great on Engines!
Made of unpolished aluminum.

Questions and Answers
Does this deeper sump oil pan eliminate the spacer? I've discovered the my inspection cover has holes for bolts drilled through it to connect to a homemade spacer. Need to replace the cover (4 dip) and would like to eliminate the spacer too. Let me know what you think? It's a 1915 body with a 1927 engine.


Is it a spacer for when you might install a Model A crank into a Model T? Some times the spacer is there to make clearance for the rods with the longer throw of the Model A crank. Also there would be a plate underneath the rods with the 4 dips in it that the rods dip into. I would not get rid of that plate because it changes how well the rods get lubricated. On a lot of cars with the deep sump oil pan. The deep sump is installed over the stock plate and the stock plate has holes drilled in it to allow oil to drain to the sump. If you do that do not drill the holes in the dip though. You can drill the holes in between the dips. Then you just have to work out a system on how the oil get out of the sump. Most of the time this is when people install a oil pump.


Answered By: 23 SEL
6 out of 6 found this answer useful.
