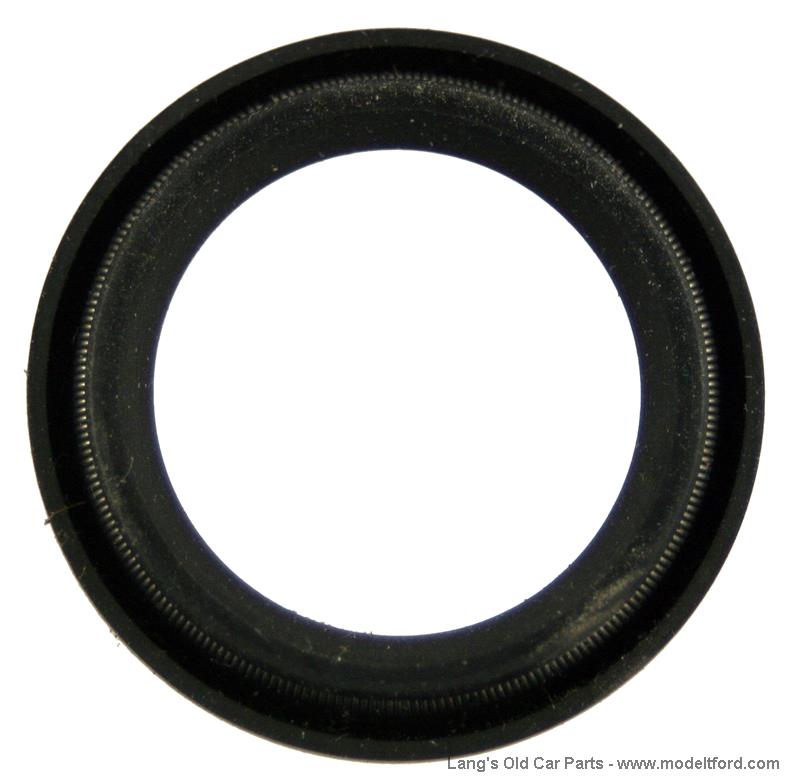

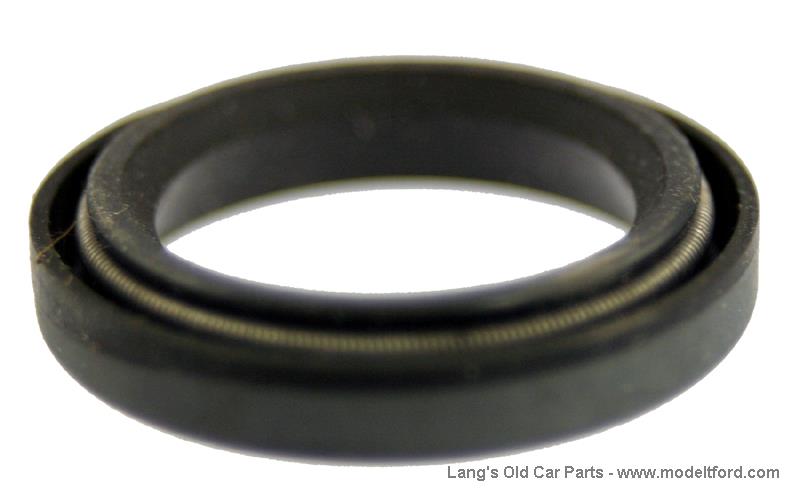

Clutch arm shaft seal, neoprene.

Model T 3402S - Clutch arm shaft seal, neoprene.
Model T 3402S - Clutch arm shaft seal, neoprene.
Item Number:3402S
Per Car 1909-19:2
Per Car 1920-27:1
Year:1909-1927
Condition:New
Price:$7.25 each




Additional Information

Clutch arm shaft seal, neoprene, stops oil leaks on transmission cover where clutch shaft enters. 1909-19 used two seals, later cars used 1 seal. The transmission cover needs to be machined to accept these.

Questions and Answers
I have a 1925 Model T, and recently purchased one of your clutch arm shaft seals which, as you say, requires machining to fit. I assume I will need to cut a counterbore in the hogshead. What are the counterbore diameter and depth needed for the seal? Thanks, Carl
 You need to make a 7/8" diameter hole atleast 3/16 deep.
Answered By: 23 SEL
19 out of 19 found this answer useful.
