Home > Item Number: 3250C

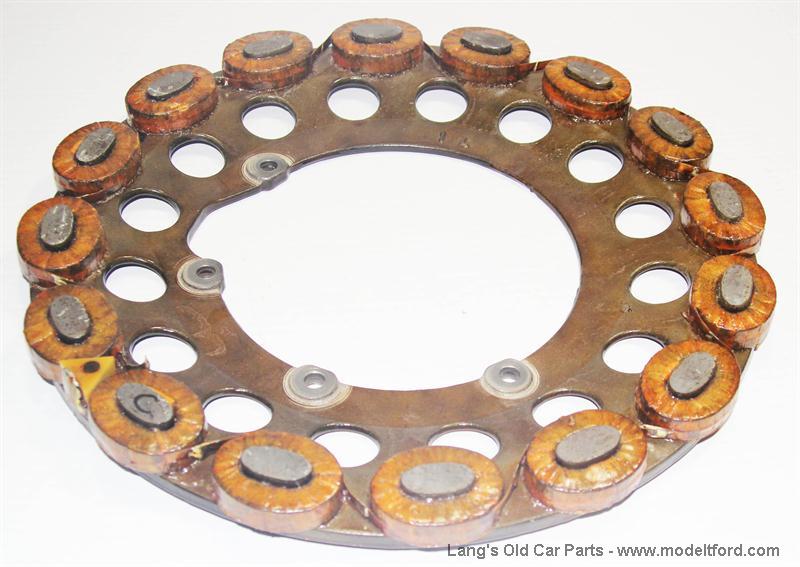

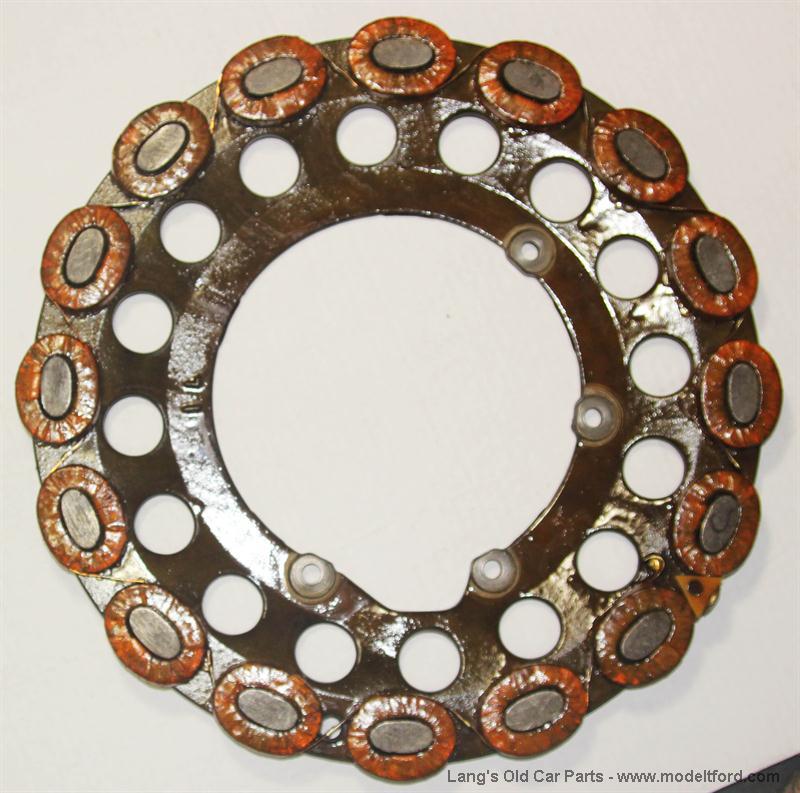

Magneto coil assembly, Rebuilt, double stack, oval spool.

Model T Magneto coil assembly, Rebuilt, double stack, oval spool. - 3250C
Model T Magneto coil assembly, Rebuilt, double stack, oval spool. - 3250C
Item Number:3250C
Per Car:1
Year:1915-1917
Condition:Refurbished
Price:$265.00 each
Core Charge:$50.00
For more information about core charges click here




Additional Information

Magneto coil assembly, Rebuilt, double stack, oval spool. These are the best coils available! They have all new copper (not just rewound). The copper is insulated with "short proof" polyester film tape which is good to 600 degrees and oil proof. Windings are then wrapped with silk tape. Finally the entire magneto coil is dipped in insulating solution and baked to cure the surface, this prevents additives in oil from damaging the coil. New very hard, heat proof fiber plaster contact block installed. NOTE: Double stack, oval spools, non-removable post (spool pole), cast iron ring, 1/4” stack and 3/4” thick magnets.

REFUNDABLE CORE CHARGE: A rebuildable oval double stack magneto coil ring for an EXCHANGE CORE REQUIRED or this REFUNDABLE CORE CHARGE WILL BE ADDED TO THE COST OF THIS PART. Cores must have all windings intact. We will pay $10.00 for extra additional rebuildable cores.



Core Charge: $50.00 each
