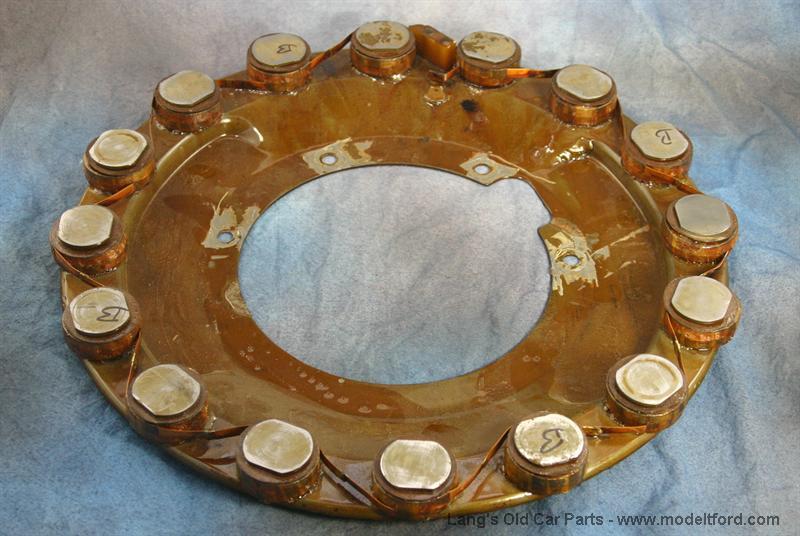

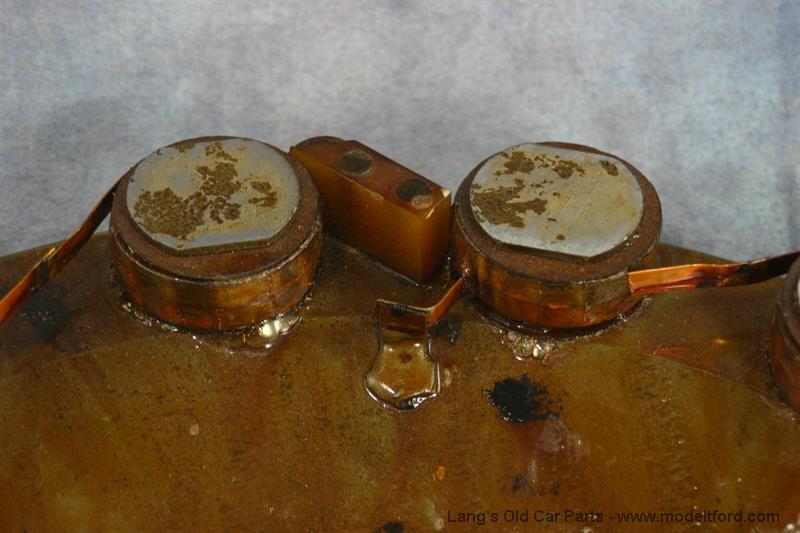

Rebuilt magneto coil assembly. double stack round spool removable pole

Model T 3250B - Magneto coil assembly. Rebuilt, double stack round spool
Model T 3250B - Magneto coil assembly. Rebuilt, double stack round spool
Item Number:3250B
Per Car:1
Price:This item is no longer available.
Core Charge:$50.00
For more information about core charges click here
Additional Information

Magneto coil assembly, Rebuilt, double stack round spool. These are the best coils available! They have all new copper (not just rewound). The copper is insulated with "short proof" polyester film tape which is good to 600 degrees and oil proof. Windings are then wrapped with silk tape. Finally the entire magneto coil is dipped in insulating solution and baked to cure the surface, this prevents additives in oil from damaging the coil. New very hard, heat proof fiber plaster contact block installed.

NOTE: There are several variations of double stack round spool magneto rings that were used from 1909-1914.

WE MUST HAVE YOUR CORE FIRST TO REBUILD, Please allow approx. 4 weeks for rebuilding.

MUST HAVE YOUR MAGNETO RING FIRST TO REBUILD. A rebuildable oval double stack magneto coil ring to rebuild REQUIRED. Cores must have all windings intact. We will pay $20.00 for extra additional rebuildable cores.

Core Charge: $50.00 each
