ADJUSTABLE Modern Drive Shaft Bearing Assembly

Model T ADJUSTABLE Modern Drive Shaft Bearing Assembly. - 2587ADJ2
Model T ADJUSTABLE Modern Drive Shaft Bearing Assembly. - 2587ADJ2Model T ADJUSTABLE Modern Drive Shaft Bearing Assembly. - 2587ADJ2Model T ADJUSTABLE Modern Drive Shaft Bearing Assembly. - 2587ADJ2
Item Number:2587ADJ2
Per Car:1
Year:1921-1927
Condition:Refurbished
Price:$122.00 kit
Core Charge:$25.00
For more information about core charges click here




Additional Information

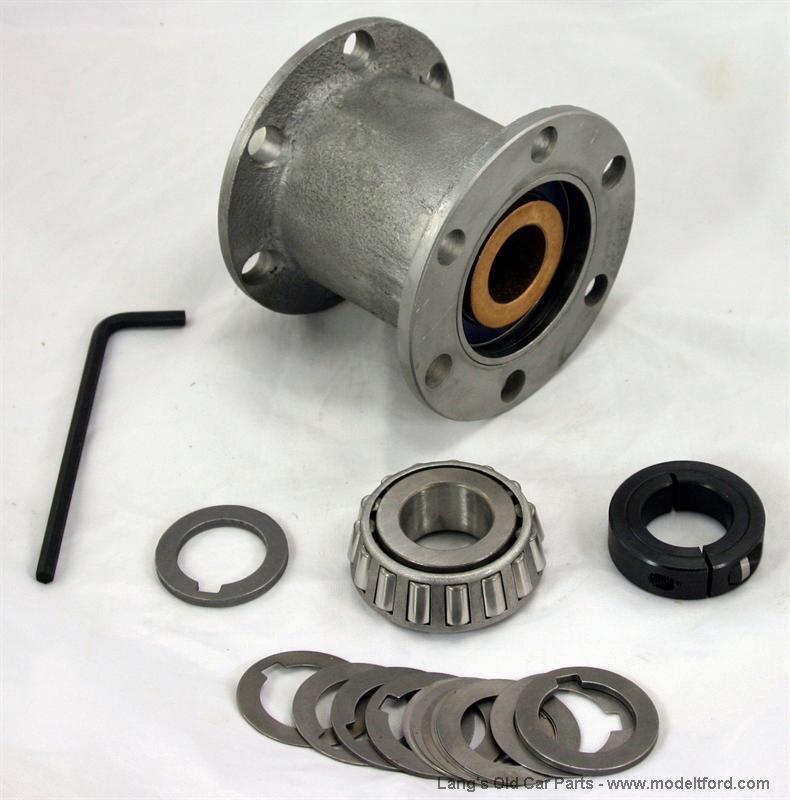

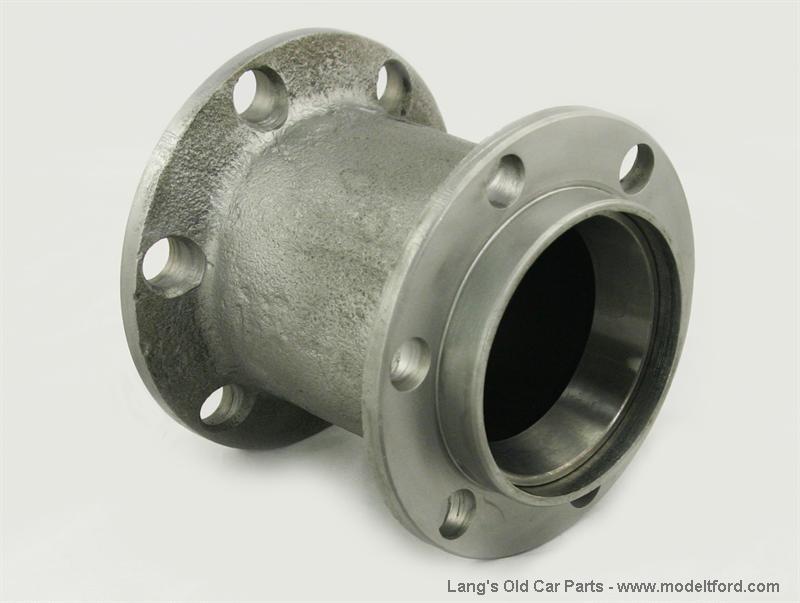

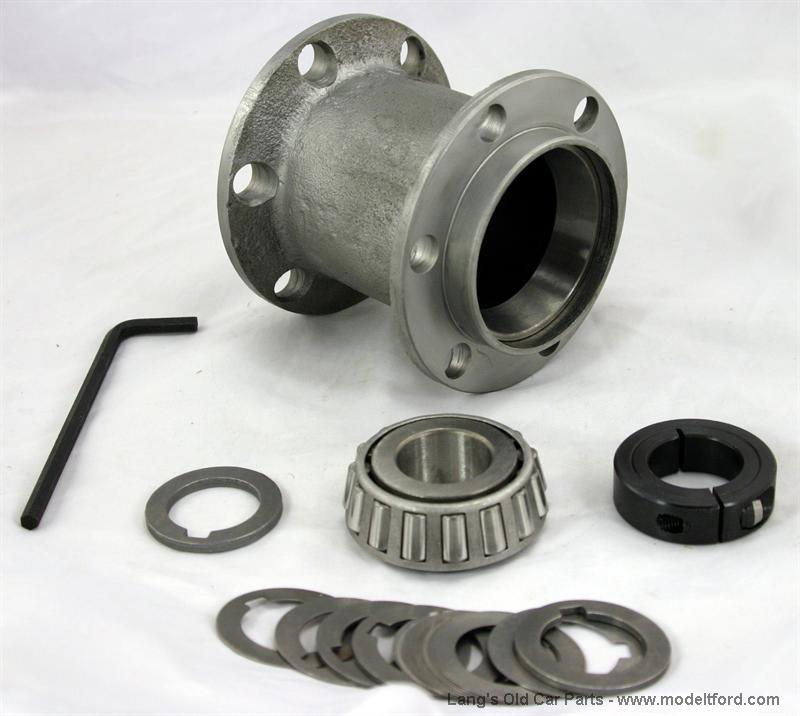

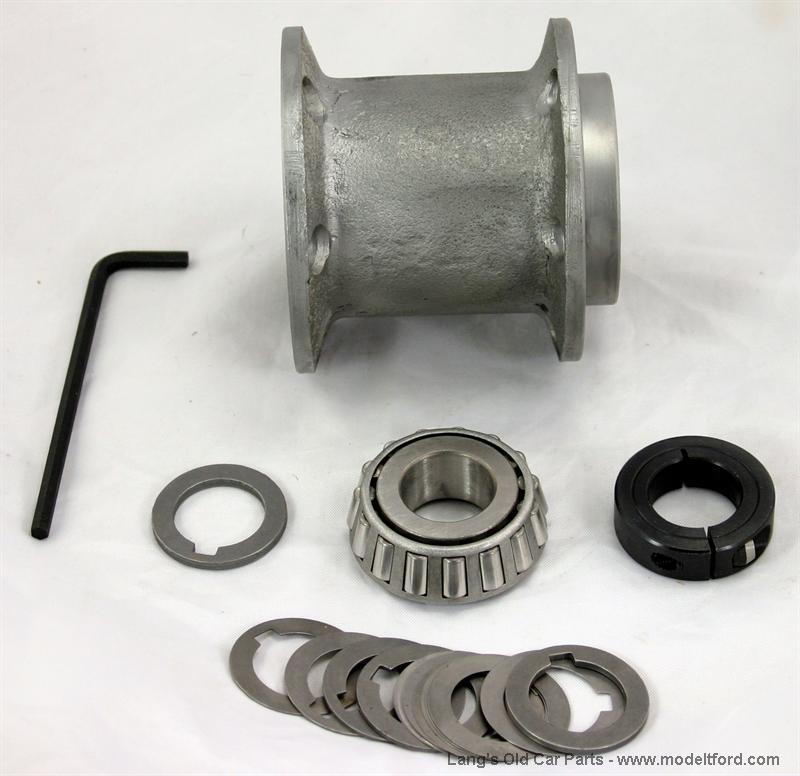

ADJUSTABLE Modern Drive Shaft Pinion Bearing Assembly,  Installs in minutes - no machining required. You supply your 1921-1927 open spool drive shaft bearing housing. These assembly is similar to the 2587PB2 kit, however, this kit also includes a full shim set that allows an easy yet precise control of ring and pinion gear mesh of 0.0005"!
This replaces part #2587 drive shaft bearing, 2589 drive shaft ball race, and 2596 drive shaft inner sleeve with modern bearings listed below.

  • Sealed upper bearing prevents drive shaft housing debris from entering pinion bearing or differential gear.

  • Modern roller bearing technology reduces drag.

  • Tapered lower roller bearing

  • Full shim set for precise control of ring/pinion gear mesh

  • Eliminates all drive shaft end play. No "fore and aft" pinion movement.

  • Eliminates need for precision U-joint end play setting.

  • Complete step-by-step instructions provided to make installation a breeze even for the non-experienced person.

  • Satisfaction assured - Field proven by Model T Ford owners.

REFUNDABLE CORE CHARGE: An unpitted open drive shaft housing for an EXCHANGE CORE REQUIRED or this REFUNDABLE CORE CHARGE WILL BE ADDED TO THE COST OF THIS PART. The core must not have any cracks. We will pay $7.50 for extra rebuildable housings.

Core Charge: $25.00 each
Questions and Answers
Does this adjustable bearing system adjust for front to back positioning of the pinion? Also does it allow left to right positioning for backlash setting without using ring gear shims?
 It only moves the drive shaft front and back, it will not move left or right. Because the gears are cut at the angle you can take care of the clearance some with just going front to back but if you go too far the gear teeth could be misaligned too much and wear uneven.
Answered By: 23 SEL
25 out of 47 found this answer useful.
