Home > Item Number: 4818-19B

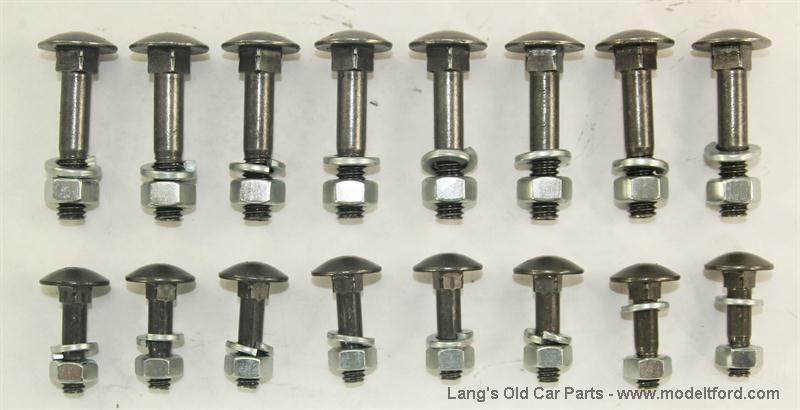

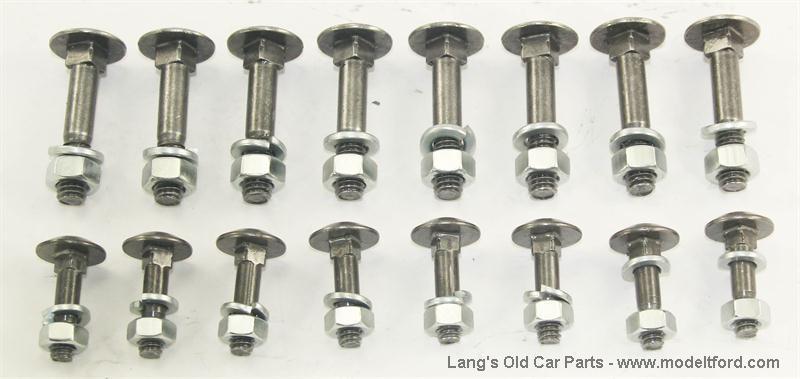

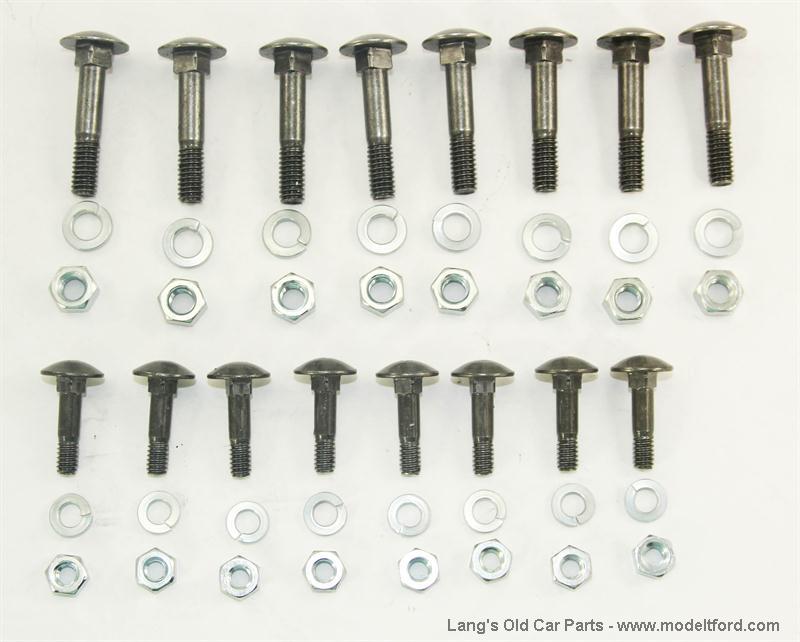

Running board bolt set. Original style head, For ORIGINAL running boards ONLY.

Model T Running board bolt set. Original style, For original running boards ONLY. - 4818-19B
Model T Running board bolt set. Original style, For original running boards ONLY. - 4818-19BModel T Running board bolt set. Original style, For original running boards ONLY. - 4818-19B
Item Number:4818-19B
Per Car:1
Year:1920-27
Condition:New
Price:$37.95 set




Additional Information

This bolt set is used to mount the running boards to the support brackets and fenders. It is for use with ORIGINAL running boards ONLY. The bolts are duplicates of original bolts that have unusual heads and are made to original Ford drawings. Also includes hex nuts.

NOTE: CHECK THE RUNNING BOARD BOLT HOLE SIZES BEFORE ORDERING! Sets are available for both original and reproduction running boards. To determine the difference between these measure the bolt holes:

  • Original running boards have 1/4” holes for the running board to fenders bolts and 5/16” for the running board to support bracket.
  • Reproduction boards use the same size 5/16" hole throughout.
  • 1909-20 bolt sets are for use on cars that use an 8 piece block set, part# 4822E that includes blocks for the running boards to fender bolts. NOTE: Use the later set if your 1917-1920 car uses only 4 wood blocks. (1909-20 cars have forged cast running board brackets)
  • 1921-1925 bolts sets are for use on cars that use a 4 piece block set, part# 4822. (1921-25 cars have stamped steel running board brackets)

 The following is a list of our sets that include the original style bolts and nuts.

  • 4818-19E Original Running board mounting bolt set, 1909-20 for use with 8 piece block set
  • 4818-19B Original Running board mounting bolt set, 1920-25 for use with 4 piece block set
  • 4818-19ER Reproduction Running board mounting bolt set, 1909-20 for use with 8 piece block set
  • 4818-19BR Reproduction Running board mounting bolt set, 1920-25 for use with 4 piece block set
Questions and Answers
There are currently no questions for this item.

To ask a question about this item please press and fill out the form.
