Premium silicone head gasket

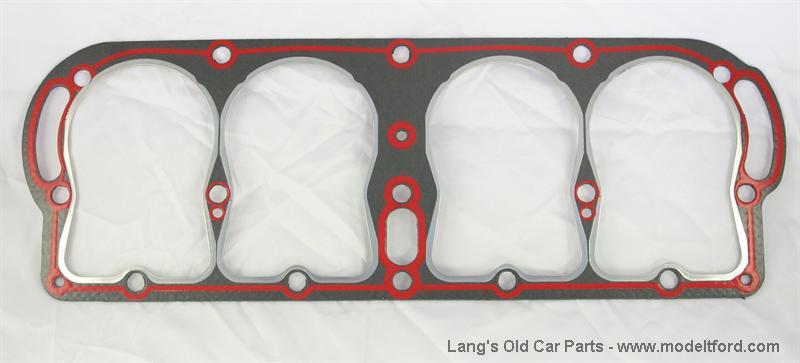

Model T 3002SIL - Premium silicone head gasket
Item Number:3002SIL
Per Car:1
Year:1909-1927
Condition:New
Price:$39.95 each




Additional Information

Premium silicone head gasket. This head gasket has a solid steel core inside heavy-duty high density gasket material coated with silicone and high temperature silicone around all water passages. Install with NO additional sealants. This will not work with "Z" high compression heads part 3001H-14 or 3001HCH.

Questions and Answers
What order and torque do you tighten head bolts?


You tighten these head bolts starting from the center  bolt alternating sides until you reach the ends. The torque depends on what type of head you have.

  • Original Steel Head - 50-55 lbs.

  • Aluminum Reproduction Head 45 lbs.


Answered By: 23 SEL
317 out of 461 found this answer useful.

I Found this information or
after tightning head down and running engine, must a new head gasket be used if tore back down?
 You can get away with reusing the copper style gasket as long as it isnt damaged, The steel gaskets and the silicone gaskets are a one time use.
Answered By: 23 SEL
88 out of 147 found this answer useful.

I Found this information or
Is this the best choice to replace the old copper gasket?
 Alot of it is preferance. I have been using the copper head gaskets and Ill stick with them because you can reuse them a few times. The silicone one you can not reuse, but alot of other people like them.
Answered By: 23 SEL
13 out of 19 found this answer useful.

I Found this information or
Can the gasket be used with a high compression head. Your answer is no. Is that for a aluminum head? Or a cast iron head? Or no on both?
 This gasket has a steel crush ring around the combustion chamber that must be sandwiched between the head and the block. Most high compression heads have a different shape on the deck so that it exposes the silicone directly to the combustion chamber which will not work. In the steel or copper gaskets you have the metal acting as a shield on the main surface of the gasket so that it is not a problem.
Answered By: 23 SEL
5 out of 9 found this answer useful.

I Found this information or
Will this work with high compression heads or pistons?
 No this will not work with the high compression heads, But will work with high compression pistons
Answered By: 6 JRL
11 out of 22 found this answer useful.

I Found this information or


To ask a question about this item please press and fill out the form.
