High compression head, Low style, 14mm spark plugs

Model T High compression head, low style
Model T High compression head, low style
Item Number:3001L-14
Per Car:1
Year:1909-1917
Condition:New
Price:This item is no longer available.
Additional Information

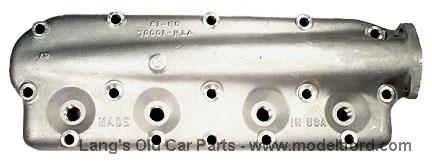

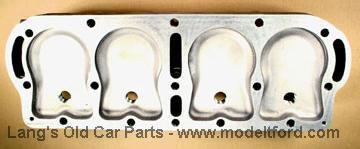

Aluminum High Compression Head, Low Style for use with low radiators and with 14mm modern style spark plugs. Computer designed flat style combustion chamber, original exterior appearance except has NO Ford script, 6 to 1 compression ratio, extra water capacity, adds approx. 7 HP, use with stock pistons, no modifications to your engine are required. Gives more efficient combustion on today's fuel. Uses standard Model T head gasket. Note: Low style heads are 2" tall and high heads are 2.5" tall. This is the measurement from the head gasket surface to under the head of the head bolt.

NOTE: Low heads are 2” tall and high heads are 2-11/16” tall, from the head gasket surface to under the head of the head bolt.

Questions and Answers
What order and torque do you tighten head bolts?


You tighten these head bolts starting from the center  bolt alternating sides until you reach the ends. The torque depends on what type of head you have.

  • Original Steel Head - 50-55 lbs.

  • Aluminum Reproduction Head 45 lbs.


Answered By: 23 SEL
353 out of 498 found this answer useful.
